ESD Table Mat

ESD electro-static discharge

A) Product Name

ESD Rubber Mat

B) Raw Material

NBR + Synthetic Rubber

C) Purpose

To prevent equipment damage resulting from the triboelectric voltage of the static dissipative

D) Scope

Ideal for Workstations, Electronic Manufacturing, Pharmaceutical Plants, Cleanrooms, Fiber Optics, Electronic Assembly, Electronic Warehousing, Circuit Assembly, Aerospace, CMOS chips, microprocessor, semiconductor, dish drivers, composites, LCD screen products, circuit product lines, hospitals and Pharmaceutical industries, precision instrument etc

E) Characteristics

1 ) The anti-static mat is made up of two layers, the top layer ( hard ) is static dissipative, and the bottom layer ( soft ) is conductive.

2) Features:-  The anti-static properties of the mat are according to the relative requirements of SJ/T 10694-1996.

The surface resistance of static dissipative layer ( 1.0 x 10e6 ~ 10e9 Ω ) ,  The surface resistance of conductive layer           ( Below 1.0 x 10e6 Ω ) ,  Volume resistance ( 1.0 x 10e6 ~ 10e9 Ω ) , Surface triboelectric voltage of the static dissipative material < 200 V , The time of static discharging below 100V should be less than 1 second .

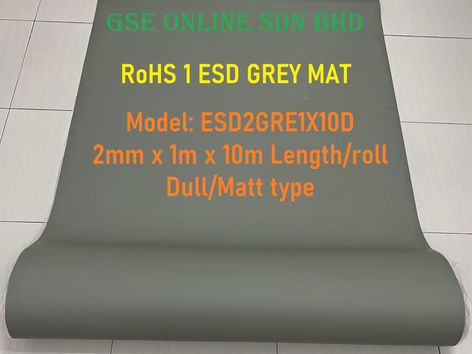

3) Part / Model No. : GS – ESD ( Shinning ( Glossy ) / Dull ( Matt ))

4) Compliant to ​​​GB/T14437-97.

5) RoHS 1 compliant .

6) Top Layer Material: Colour ( NBR Rubber ),  ​Bottom Layer Material: Black ( Synthetic Rubber ).

7) Surface Resistivity :

a) Top ( 1.0 × 10 ⁷ ~ 1.0 × 10⁹ Ohms )

b) Bottom ( 1.0 × 10² ~ 1.0 × 10⁶Ohms )

8) Hardness ( IRHD, Micro Hardness Tester Wallace )

​​a) Top Layer: 70 ± 5° ( Shore A ),

b) Bottom Black layer: ​50 ± 5° ( Shore A )

9) Overall Thickness: 2 mm

F) Specifications

1) ~2mm ( Thickness ) x 610mm ( 2ft ) ( Width ) x 10,000mm ( 10m ) ( length ) / roll , weight around 18.5kgs / roll

2) ~2mm ( Thickness ) x 1,000mm ( 1m) ( Width ) x 10,000mm ( 10m ) ( length ) / roll , weight around 30kgs / roll

3) ~2mm ( Thickness ) x 1,200mm ( 4ft ) ( Width ) x 10,000mm ( 10m ) ( length ) / roll , weight around 36kgs / roll

Anti-slip ESD Diamond mat, the anti-static mat is made up of two layers, the top layer ( hard ) is static dissipative with anti-slip feature and the bottom layer ( soft ) in conductive
